描述

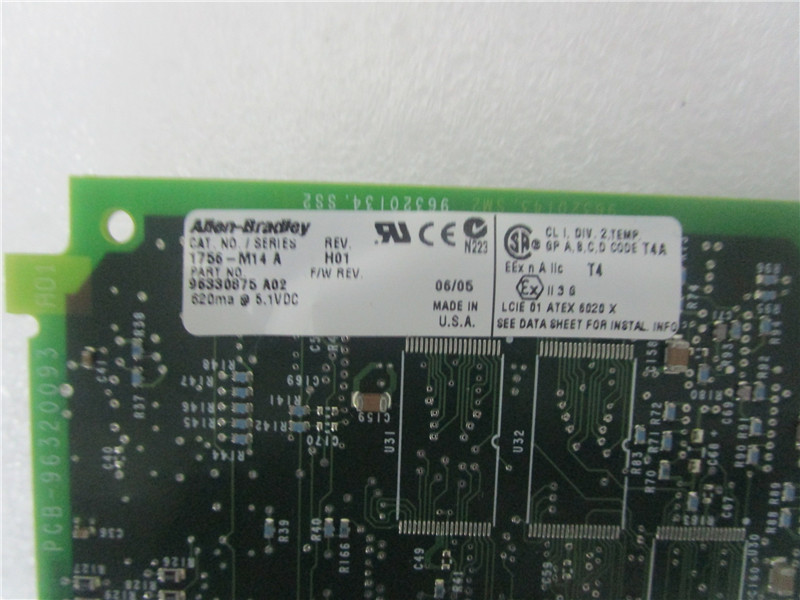

AB1756-M14

CPU的構成
PLC中的CPU是PLC的核心，起神經中樞的作用，每臺PLC至少有一個CPU，它按PLC的系統程序賦予的功能接收并存貯用戶程序和數據，用掃描的方式采集由現場輸入裝置送來的狀態或數據，并存入規定的寄存器中，同時，診斷電源和PLC內部電路的工作狀態和編程過程中的語法錯誤等。進入運行后，從用戶程序存貯器中逐條讀取指令，經分析后再按指令規定的任務產生相應的控制信號，去指揮有關的控制電路，
與通用計算機一樣，主要由運算器、控制器、寄存器及實現它們之間聯系的數據、控制及狀態總線構成，還有外圍芯片、總線接口及有關電路。它確定了進行控制的規模、工作速度、內存容量等。內存主要用于存儲程序及數據，是PLC不可缺少的組成單元。
CPU的控制器控制CPU工作，由它讀取指令、解釋指令及執行指令。但工作節奏由震蕩信號控制。
CPU的運算器用于進行數字或邏輯運算，在控制器指揮下工作。
CPU的寄存器參與運算，并存儲運算的中間結果，它也是在控制器指揮下工作。
CPU雖然劃分為以上幾個部分，但PLC中的CPU芯片實際上就是微處理器，由于電路的高度集成，對CPU內部的詳細分析已無必要，我們只要弄清它在PLC中的功能與性能，能正確地使用它就夠了。
CPU模塊的外部表現就是它的工作狀態的種種顯示、種種接口及設定或控制開關。一般講，CPU模塊總要有相應的狀態指示燈，如電源顯示、運行顯示、故障顯示等。箱體式PLC的主箱體也有這些顯示。它的總線接口，用于接I/O模板或底板，有內存接口，用于安裝內存，有外設口，用于接外部設備，有的還有通訊口，用于進行通訊。CPU模塊上還有許多設定開關，用以對PLC作設定，如設定起始工作方式、內存區等。

產品承諾：
保?證?全新原裝進口,
保?證?安全準時發貨，
保?證售后服務質量，
優勢價格，大量現貨。

主營DCS系統配件
機器人系統配件
大型伺服系統配件
品牌：ABB???,AB??,GE,FOXBORO,本特利，英維思，伍德沃德，西屋，瑞恩，施耐德，西門子，摩托羅拉，安川。力士樂。ACSO，橫河等進口品牌。Triconex?Siemens?Yaskawa?ABB?GE?Ovation?AB?Foxboro?Motorola?Schneider?XYCOM?KUKA
